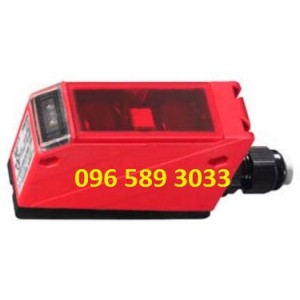

SENSOR LEUZE HRT96K/R-1680-1200-25

Operating principle: Scanning principle with background suppression
Operating range, white 90%: 0.1 – 1.2 m
Operating range, gray 18%: 0.1 – 1.1 m
Operating range, black 6%: 0.1 – 1 m
Operating range limit, white 90%: 0.1 – 1.8 m
Operating range limit, gray 18%: 0.1 – 1.6 m
Operating range limit, black 6%: 0.1 – 1.35 m
Light source: LED, Infrared
Switching frequency: 20 Hz
Supply voltage: 20 – 230 V AC/DC
Number of digital switching outputs: 1
Switching element: Relay, NC contact/NO contact
Switching principle: Light switching
Type of connection: Terminal
Number of pins: 4-pin
Design: Cubic
Operational controls: Multiturn potentiometer
Degree of protection: IP 67

Light scanners with adjustable background suppression using visible red light and infrared light with versatile options such as switching delays, activation input and optics heating.

Complementary outputs, scanning range adjustment and delay before start-up for optimal adaptation to the application
Connection via M12 connector or terminal compartment
Multiple options with switching delays, activation input and optics heating for use at low temperatures
Up to three programmable switching points for short range/distant range
