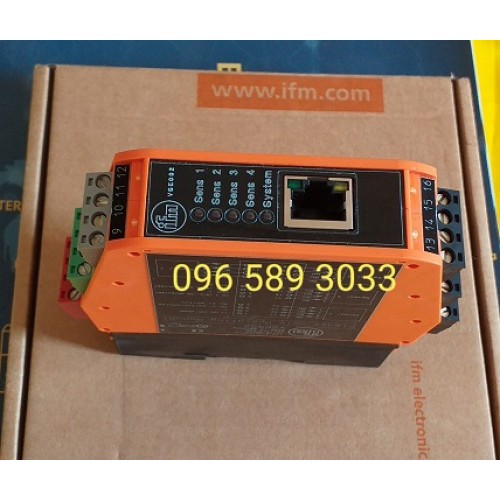

Vibration transmitter VSE002
Giá: Liên hệ
| Electrical data | |
|---|---|
| Operating voltage tolerance [%] | 20 |
| Operating voltage [V] | 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption [mA] | 200; (24 V) |
| Protection class | III |
| Inputs / outputs | |
| Total number of inputs and outputs | 8; (configurable) |
| Number of inputs and outputs | Number of analog inputs: 2; Number of digital outputs: 1; Number of analog outputs: 1 |
| Inputs | |
| Number of analog inputs | 2 |
| Resolution of analog input | 12 |
| Dynamic input - sampling rate [kSamples] | 100 |
| Outputs | |
| Output signal | switching signal; analog signal |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Measuring/setting range | |
| Frequency range [Hz] | 0...12000 |
| Interfaces | |
| Communication interface | Ethernet |
| Protocol | TCP/IP |
| Operating conditions | |
| Ambient temperature [°C] | 0...70 |
| Storage temperature [°C] | 0...70 |
| Protection | IP 20 |
